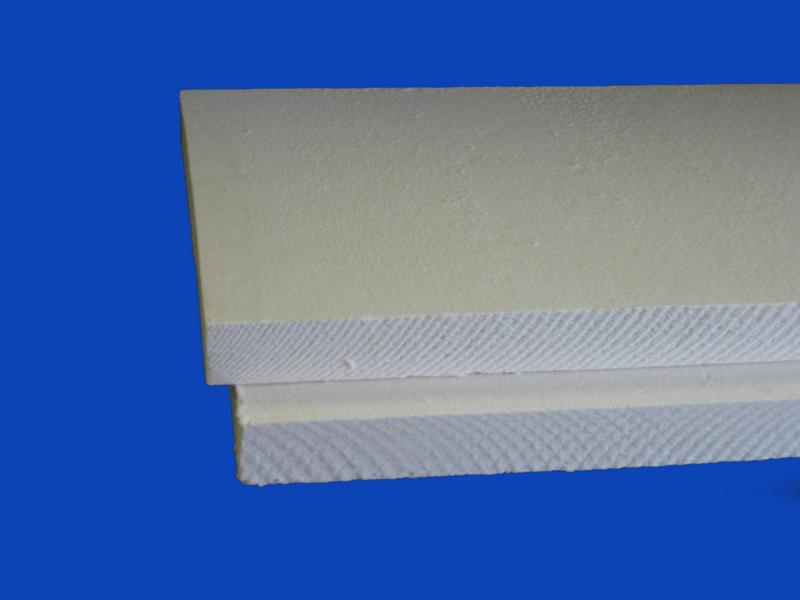

Ceramic Fiber Board


Shanghai GongYe offers a family of high temperature ceramic fiber boards, which are produced through wet forming process of ceramic fiber and binders.  ceramic fiber board is featured with high temperature stability, low thermal conductivity, even density, and excellent resistance against thermal shock and chemical attack.  ceramic fiber board also resists oxidation and reduction. If they are wet by water, steam, or oil, physical and thermal properties are fully restored upon drying. Ceramic Fiber board is used for a variety of high temperature applications, including refractory linings, backup insulation, baffles and muffles, heat shields, combustion chambers, flue insulation, and fire protection. These ceramic fiber boards are available in a variety of temperature ratings, densities, thicknesses, widths and lengths, and custom vacuum formed shapes.


Standard Grade (STD): continuous use up to 1093 °C (2000 °F)
High- Purity Grade (HP): continuous use up to 1149 °C (2100 °F)
Zirconium Grade (HZ): continuous use up to 1350 °C (2462 °F)

Standard Density: 16 pcf (LD), 22 pcf (MD), 26 pcf (HD)
Standard Thickness: 1/4",1/2", 1",1.5", 2"
Standard Widths: 12"*, 24", 42"*
Standard Lengths: 36 ", 48"

* Not available for all thickness

Ceramic Fiber Board - Typical Applications

  • Insulating backup to brick & castable
  • Furnace hot face lining
  • Use in industrial heat process equipment
  • High temperature gasket & seals
  • Flue & chimney linings in furnace & kilns
  • Molten metal trough covers
  • Expansion joint Industrial heat shields & thermal barriers
  • Industrial combustion chamber construction
  • Infra red element supports
  • Board over blanket hot face lining
  • Full thickness refractory lining
  • High temperature boiler wall insulation
  • Pouring forms for castable



Ceramic Fiber Board - Product Range

Temp.
Rating
Target Density
Board Grade
Product Description
2300°F
16-25#
HP
A high quality surface finish and precise dimensional tolerances make aesthetic quality as well as performance is required.

2600 °F
22-26#

HZ
The addition of clay gives a higher density, MOR, and strength.
Made from a special blend of alumina-silica fibers and zirconia, the boards give high stability at heat up to 2462 °F

Ceramic Fiber Board - Typical Product Properties

INDEX
HP GRADE (LD)
HP GRADE (HD)
HZ GRADE
Temperature
2300°F
2300°F
2600°F
Working Temp.
2100°F
2100°F
2462°F
Melting Point
3200°F
3200°F
3300°F
Color
Off White
Off White
Off White
Available Density (kg/m3)
(lbs/ft3)
260-290
16-18
350-400
22-25
360-380
20-22
LOI(% by WT)
6 - 7%
6 - 7%
6 - 7%
Dielectric Strength
25.4 volts/mil
25.4 volts/mil
25.4 volts/mil
Shrinkage (%) 24 Hrsat temp.?? F
-3 (2012°F)
-3 (2012°F)
-3 (2462°F)
Thermal Conductivity w/m-k (Btu in./hr/ft2°F)

@ 400 °C (752°F)
@ 800 °C (1472°F)
@ 1000°C(1832°F)
0.085(.589)
0.132 (.915)
0.180 (1.25)
0.085(.659)
0.132 (1.07)
0.180 (1.39)
0.085(.638)
0.132 (.991)
0.180 (1.28)
Tensile (Mpa)
0.5 (psi)
0.5 (psi)
0.5 (psi)

Ceramic Fiber Board - Chemical Analysis

Al2O3
47-49
47-49
39-40
SiO2
50-52
50-52
42-45
ZrO2
--
--
15-17
Fe2O3
0.2
0.2
0.2
Na2K2O
<0.5
0.2
0.2
Sizes Available
Thickness
24"x36; 24x48
1/2, 1", 1.5", 2"
24x36"; 24x48"
1/4", 12", 1", 1.5", 2"
24"x36; 24"x48"
1", 1.5", 2"
