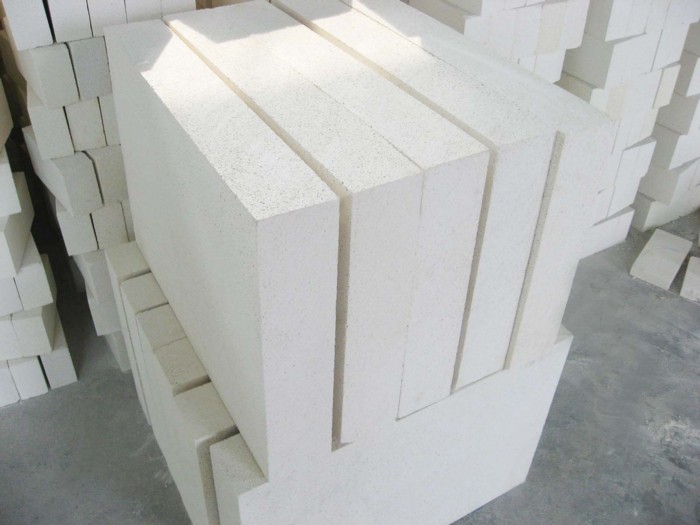

Insulating Firebrick



Shanghai GongYe provides a complete range of insulating firebrick (IFB) that offers unsurpassed performance and value for a wide variety of industries and applications. Different grades of insulating firebrick are manufactured according to international standards, and are suitable to operate in various temperatures and atmospheres up to 3000º F.



Features of Insulating Firebrick:


  • Excellent strength at ambient and elevated temperatures
  • High compressive strength
  • Every brick ground to precise dimensions
  • Very low levels of iron and other impurities
  • Lightweight and energy-efficient
  • Lower heat storage than denser refractories
  • Heats quickly and economically to operating temperature
  • Cools fast to speed periodic operations.


Typical Applications of Insulating Firebrick:


  • Glass Industries
  • Ceramics Industries
  • Electrolytic Aluminum Industries
  • Iron & Steel Industries
  • Non-Ferrous Metals Industries
  • Power Generation Industries


Insulating Firebrick Physical Properties

Grade
IN-23
IN-26
IN-28
IN-30
Working TEMP (°F)
2300
2600
2800
3000
Working TEMP (°C)
1230
1400
1510
1620
Denisty (lb/ft3) Kg/m3
(36) 580
(50) 800
(55) 880
(64) 1030
Cold crushing strength (Mpa) lb/in2
(1.8) 260
(2.2) 320
(2.5) 360
(2.5) 363
Modulus of Rupture (Mpa) lb/in2
(1.0) 145
(1.5) 220
(1.6) 230
(1.7) 250
Permanent Linear Change %




(after heating 24 hours @)





2246°F (1230°C)

0.0



2550°F (1399°C)

-0.4


2750°F (1510°C)


-0.9

2950°F (1620°C)



-1.3
Thermal Conductivity (Btu-in/ft2,hr,°F) W/mk




752°F
1.25
1.88
1.81
2.72
400°C
0.18
0.27
0.26
0.39
1112°F
1.39
2.09
2.02
2.93
600°C
0.20
0.30
0.29
0.42
1472°F
1.60
2.30
2.16
2.30
800°C
0.23
0.33
0.31
0.43
1832°F
1.81
2.51
2.37
3.07
1000°C
0.26
0.36
0.34
0.44

Insulating Firebrick Chemical Properties

Grade
IN-23
IN-26
IN-28
IN-30
Silica - SiO2
39.7%
39.1%
31.3%
24.8%
Alumina Al2O3
56.3%
57.2%
65.8%
73.0%
Titania - TiO 2
1.5%
1.1%
0.8%
0.4%
Iron Oxide - Fe2O3
0.7%
0.7%
0.7%
0.7%
Lime - CaO
0.4%
0.5%
0.2%
0.2%
Magnesia - MgO
0.4%
0.4%
0.2%
0.2%
Soda - Na2O
0.1%
0.2%
0.3%
0.1%
Potash - K2O
0.9%
0.8%
0.5%
0.6%

Data are avarage results of test conducted under standard procedures and are subject to variation. Results should not be used for specification purposes.
Note: A material safety data sheet is available upon request.
The information, recommendations and opinions set forth herein are offered solely for your consideration, inquiry and verification, and are not, in part or total, to be construed as constituting a warrant or representation for which we assume legale responsibility. Nothing contained herein is to be interpreted as authorization to practice patented invention without a license.
