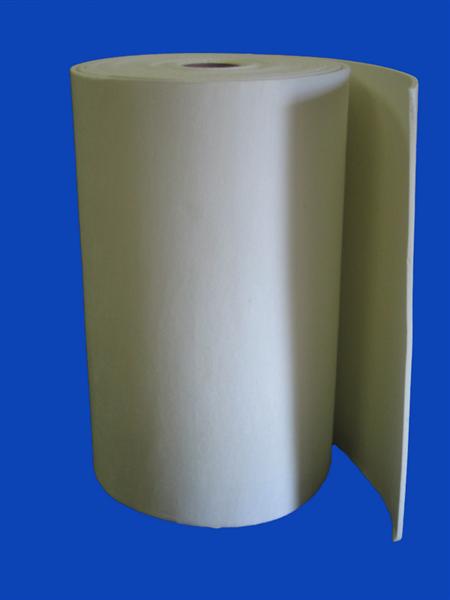

Ceramic Fiber Paper



Shanghai GongYe ceramic fiber paper consists primarily of high purity alumino-silicate fiber and is made through a fiber washing process. This process controls the content of unfiberized shots to a very minimal level within the paper. InterSource ceramic fiber paper features light weight, structure uniformity and low thermal conductivity, which serve as a perfect solution for high temperature insulation, chemical corrosion resistance, and thermal shock resistance. ceramic fiber paper can be used in various types of refractory and sealing applications. Shanghai GongYe ceramic fiber paper is available in 3  grades with a variety of thicknesses, widths, and temperature ratings:


Standard grade: maximum service temperature of 2300 °F
Premium grade: maximum service temperature of 2300°F
Zirconia grade: maximum service temperature of 2600°F

Standard Thicknesses: 1/32",1/16",1/8",1/4"
Standard Widths: 24" and 48"
Standard Packaging: Approximately 25 lb/roll (special packaging is available per requests).

Ceramic Fiber Paper - Typical Applications

  • Appliance heat seals
  • Parting plane in refractory linings
  • Combustion chamber liners
  • Backup lining for metal troughs
  • Hot top linings
  • Thermal and electrical insulation
  • Refractory backup insulation
  • Coke oven door shook absorption medium
  • Kiln car deck covering

Ceramic Fiber Paper Physical Properties

Specs
Standard
Grade
Premium
Grade
Zirconia
Grade
Color
White
White
White
Maximum Use Limit
2300°F
2300°F
2552°F
Continuous Use Limit
2012°F
2012°F
2462°F
Density (PCF)
10-13
10-13
10-13
Organic Content (%)
< 5%
< 5%
< 5%
Tensile Strength (PSI)
75-90
30-40
75-90
Break Strength (PSI)
10-15
10-15
10-15
Thermal Conductivity

@ 600°C (1112°F)
@ 800°C (1472°F)
@1000°C (1832°F)

W/mk (Btu in./hr/ft²°F)
0.08 (0.55)
0.12 (0.80)
0.18 (1.25)

0.08 (0.55)
0.11 (0.75)
0.16 (1.15)

0.08 (0.55)
0.11 (0.76)
0.17 (1.18)

Ceramic Fiber Paper Chemical Composition (normal, % weight based after firing)


Grade
Standard Grade
Premium Grade
Zirconium Grade
Al2O3
45-46%
47-49%
39-40%
SiO2
51-52%
50-52%
42-43%
ZrO2
-
-
15-17%
Fe2O3
< 1.0%
0.2%
0.2%
K2O+Na2O
< 0.5%
0.2%
0.2%
LOI
< 10%
< 10%
< 10%

Data are avarage results of test conducted under standard procedures and are subject to variation. Results should not be used for specification purposes.
Note: A material safety data sheet is available upon request.
The information, recommendations and opinions set forth herein are offered solely for your consideration, inquiry and verification, and are not, in part or total, to be construed as constituting a warrant or representation for which we assume legale responsibility. Nothing contained herein is to be interpreted as authorization to practice patented invention without a license.
